Reid X-Trail

Reid X-Trail
  • Color: Gloss Black
Color: Gloss Black
Size: Select size
Please select options Unavailable

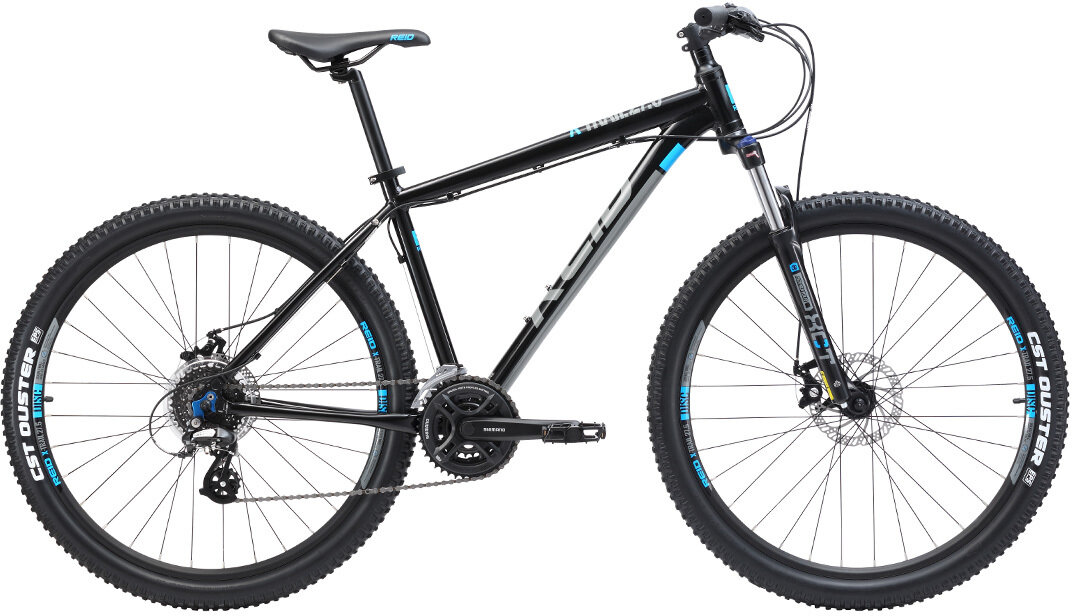

Our X-Trail is the perfect bike to try out the world of the 27.5" tire. Featuring a 6061 T6 aluminum frame with trail-inspired geometry, along with the larger diameter tire, you'll be filled with confidence out on the trail.

The Reid X-Trail 27.5 features a 6061 T6 aluminum frame with trail-inspired geometry, to ensure confidence on and off road. Also, it is at home on singletrack trails and forest roots. Moreover, the X Trail bike punches well above its weight, using features and designs featured on some of our higher-level models such as the Terra Elite. To ensure a smooth ride over tough obstacles, the X Trail bike comes with the latest Suntour XCT fork with a new improved hydraulic lock-out and adjustable preload. Additionally, the extra-wide double-butted alloy bars help to keep control through the corners and berms, while powerful Tektro disc brakes help to shed speed fast when needed.

The wheelset is made up of a durable 27.5 disc-specific rim and proven alloy hubs. Grip comes courtesy of CST 2.25" profile tires with added puncture-protection properties. To help you climb, we have equipped the X-Trail with a Shimano Altus 24 speed groupset, which features an 11-32T rear cassette and 24/34/42T chainrings for a huge gear range.


Frame 6061 aluminum alloy
Fork Suntour XCM-HLO 100mm travel with lockout and preload adjustment
Rims Reid double wall disc specific
Hubs Quando alloy quick release, disc specific
Tires CST 27.5 x 2.25"
Bottom Bracket VP Sealed bearing
Crankset Shimano alloy triple crankset, 24/34/42T
Shifters Shimano EF51 24-speed
Front Derailleur Shimano TY700
Rear Derailleur Shimano Altus
Cassette/Freewheel Shimano HG31 8-speed cassette
Chain KMC Z7
Brakes Tektro M280 mechanical disc brakes
Brake Levers Tektro
Handlebars Reid oversize alloy
Tape/Grips MTB Rubber
Stem Reid MTB 1-1/8" threadless alloy, oversize
Seatpost Reid alloy 31.6mm micro adjust
Saddle Reid MTB
Pedals VP 565 alloy

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Black / Small 05060779750846 705525
Gloss Black / Medium 05060779750839 705526 210000013879
Gloss Black / Large 05060779750822 705527
Gloss Black / X-Large 05060779750853 705528
